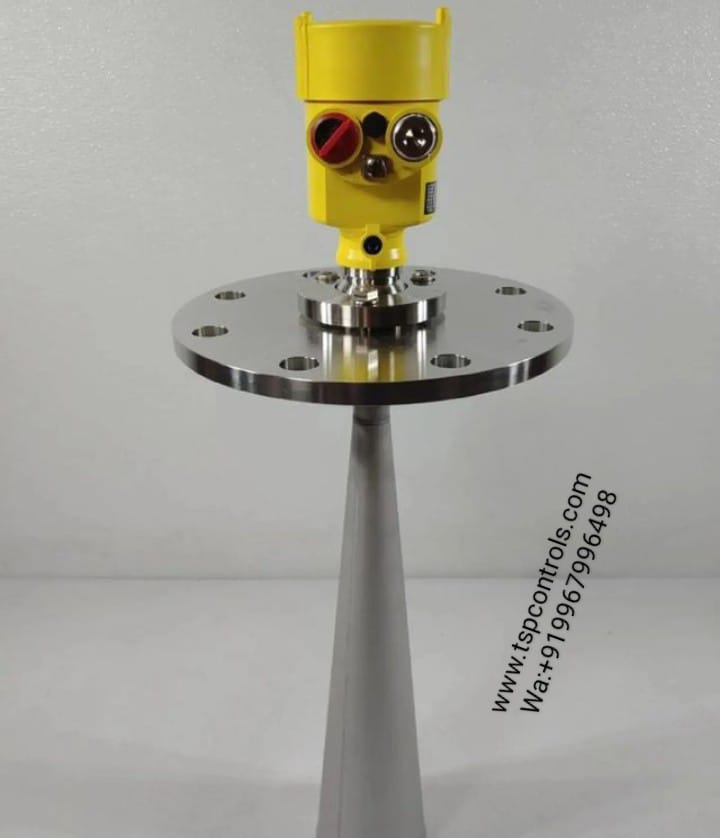

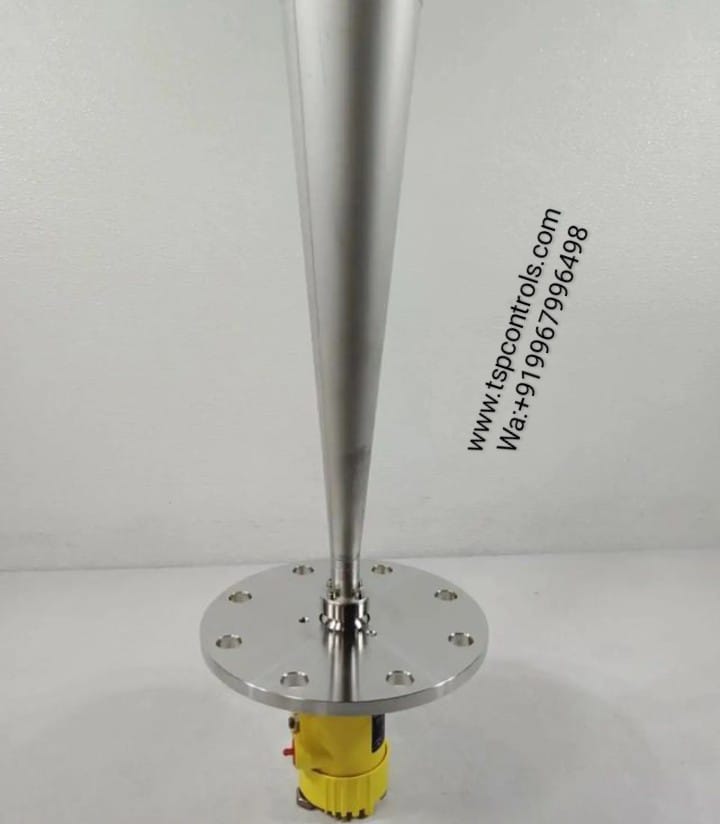

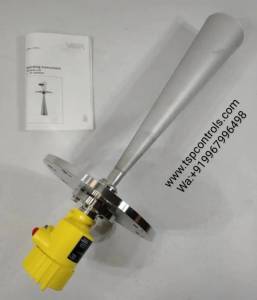

Vegapuls 69 Radar Sensor

Vegapuls 69 Radar Sensor is a sensor for continuous measurement of bulk solids under different process conditions. The sensor is ideal for level measurement in very high silos, large bunkers and segmented vessels. The very good signal focussing ensures a simple setup and a reliable measurement. The VEGAPULS 69 can be equipped with an encapsulated plastic antenna or a lens antenna integrated in the metal flange. Due to this, an optimum adaptation to different applications is possible..more

Benefits of Vegapuls 69 Radar Sensor:

• High plant availability, because wear and maintenance-free ,Maintenance-free operation through non-contact measuring principle
• Reliable measurement independent of vapour, dust and noise

Function:

The sensor emits a continuous radar signal through the antenna. The emitted signal is reflected by the medium and received as echo by the antenna. The frequency difference between the emitted and received signal is proportional to the distance and hence to the filling height. The determined filling height is converted into a respective output signal and outputted as measured value

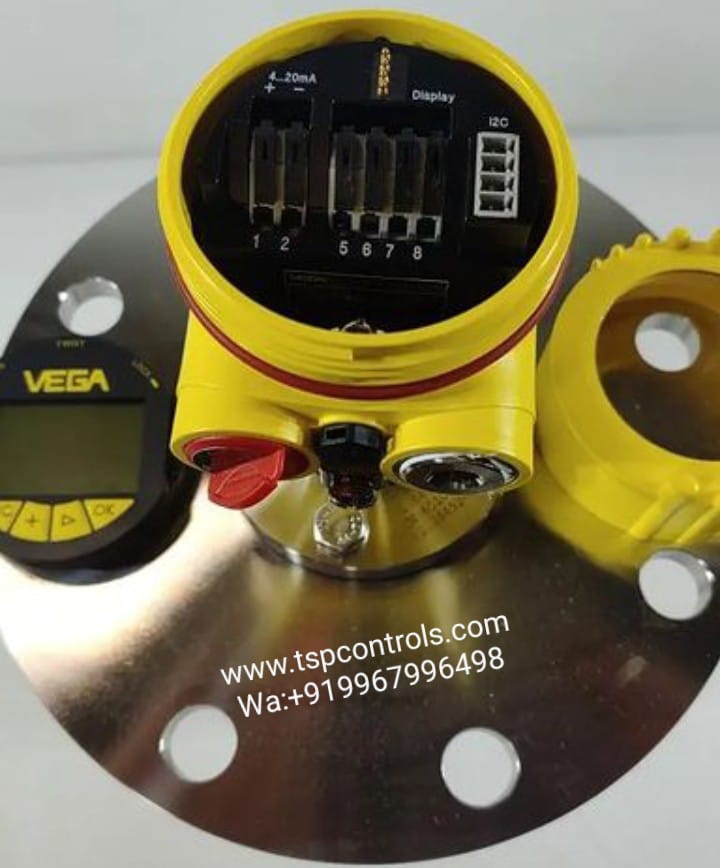

Housing versions
The housings are available as double chamber version in plastic, stainless steel or Aluminum. They are available in protection class IP 66/
IP 67.
Electronics versions
The instruments are available in different electronics versions.
Apart from 4 … 20 mA/HART in two and four-wire version, there are also digital versions with Profibus PA, Foundation Fieldbus and Modbus protocols. Another HART version is available with integrated accumulator

Technical data of Vegapuls 69 Radar Sensor:

For Complete Specification: TSP Controls – Vegapuls 63 Datasheet- 2
