Description

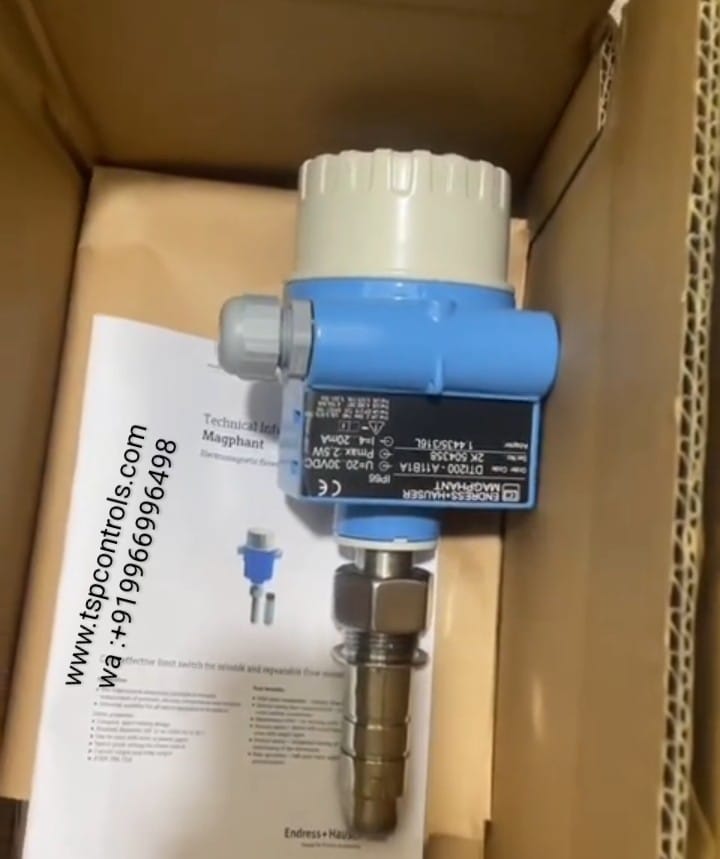

Magphant DTI200-A11B1A Electromagnetic Flowmeter | Endress + Hauser
Product name : Electromagnetic Flowmeter
Model : Magphant DTI200
Part Number : DTI200-A11B1A
Brand : Endress + Hauser
Origin: Germany
Magphant DTI200-A11B1A Electromagnetic Flowmeter is a cost-effective, compact limit switch Magphant is an ideal flowmeter for water applications in Utilities. Its reliable measurement with high repeatability allows for universal and easy use and supports safe process- and plant operation….more
The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity
Universally usable for all water applications in Utilities.
Benefits of Magphant DTI200-A11B1A:
High plant availability – reliable flow information
Energy-saving flow measurement – no pressure loss due to cross-section constriction
Maintenance-free – no moving parts
Process safety – device self-monitoring and reliable monitoring even with empty piping
Product safety – integrated testing to check correct functioning of the electronics
Easy operation – potentiometer setting of full-scale value
Device properties
Compact, space-saving design
Nominal diameter: DN 15 to 2000 (1/2 to 80″)
Applicable for steel or plastic pipes
Switch point setting via rotary switch
Current output and relay output
ATEX, FM, CSA
Specification of Magphant DTI200-A11B1A :
Nominal diameter range
DN15 to DN2000
1/2″ to 80″Wetted materials
1.4435/316L
Measured variables
Volume flow
Max. measurement error
2%
Measuring range
0 to 56’550 m3/h
Max. process pressure
0 to 16 bar abs
Medium temperature range
-20 to +120°C
(-4 to +248°F)Ambient temperature range
-20…60 °C (-4 to 140°F)
Sensor housing material
Die-cast aluminium, epoxy powder coated
Degree of protection
IP 66 / NEMA 4X / Type 4X
Display/Operation
Test function
Outputs
4 to 20 mA
RelayInputs
None
Power supply
24 V DC (20…30 V DC)
Hazardous area approvals
FM
CSAProduct safety
CE, EAC
For Complete datasheet : TSP Controls – Magphant DTI200 Datasheet
